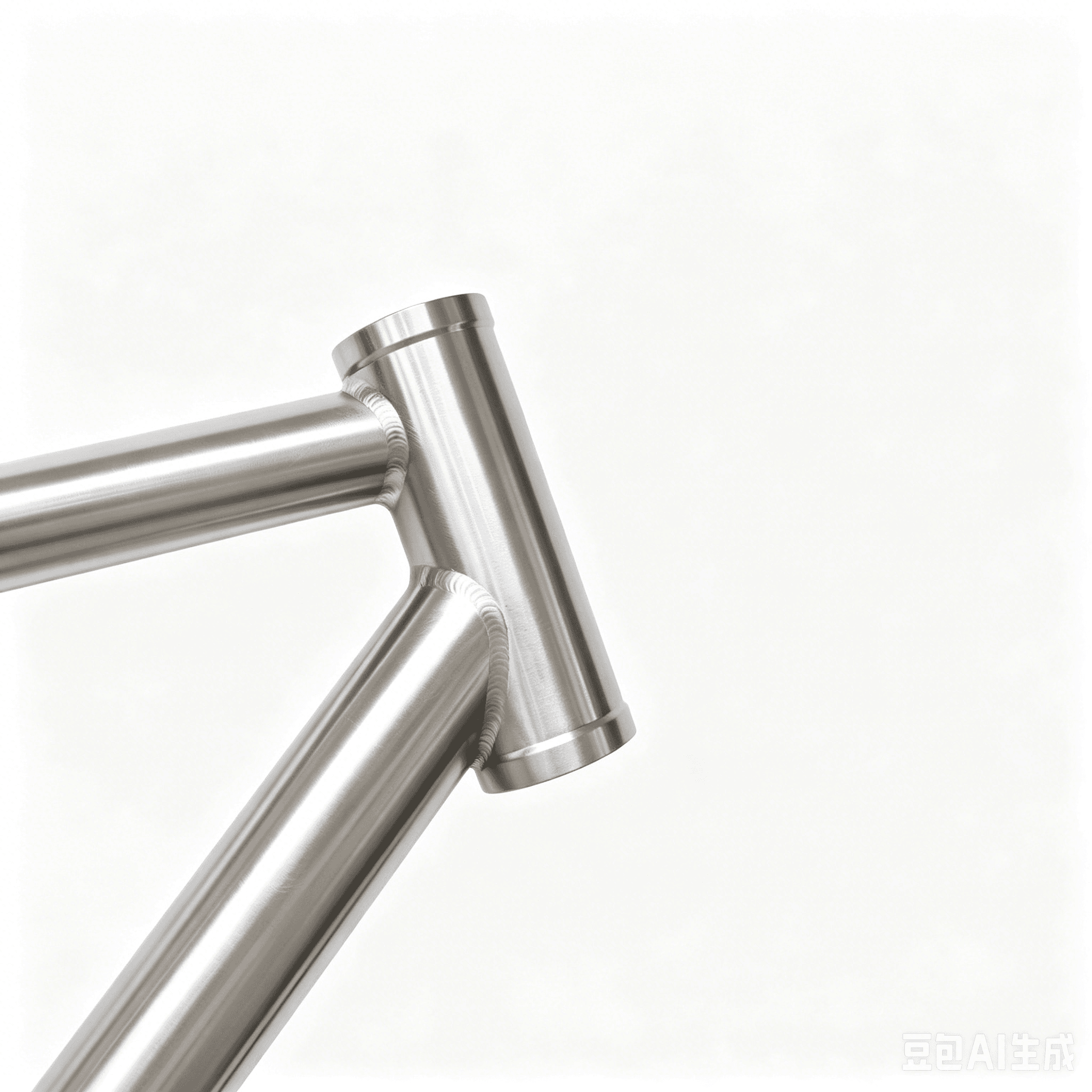

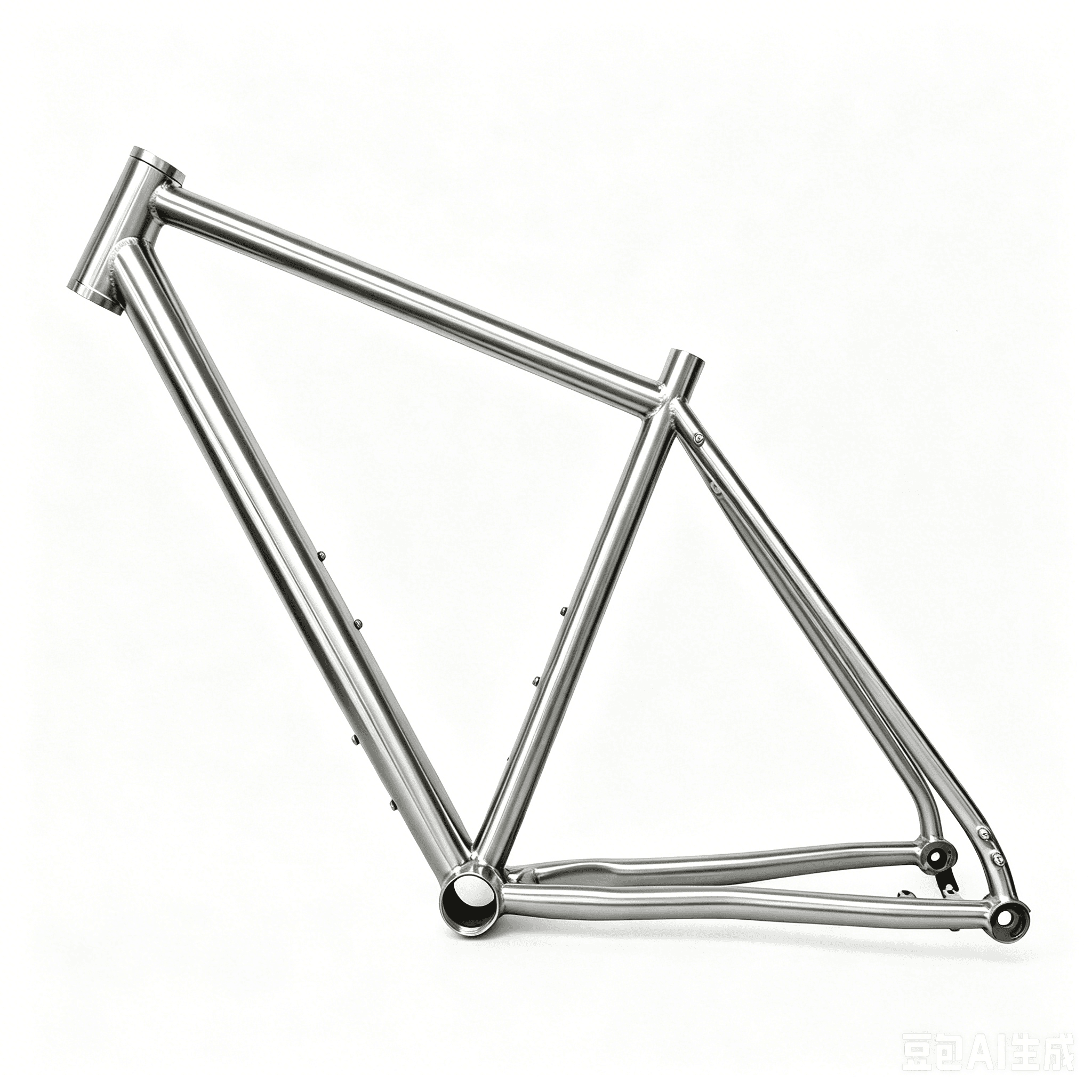

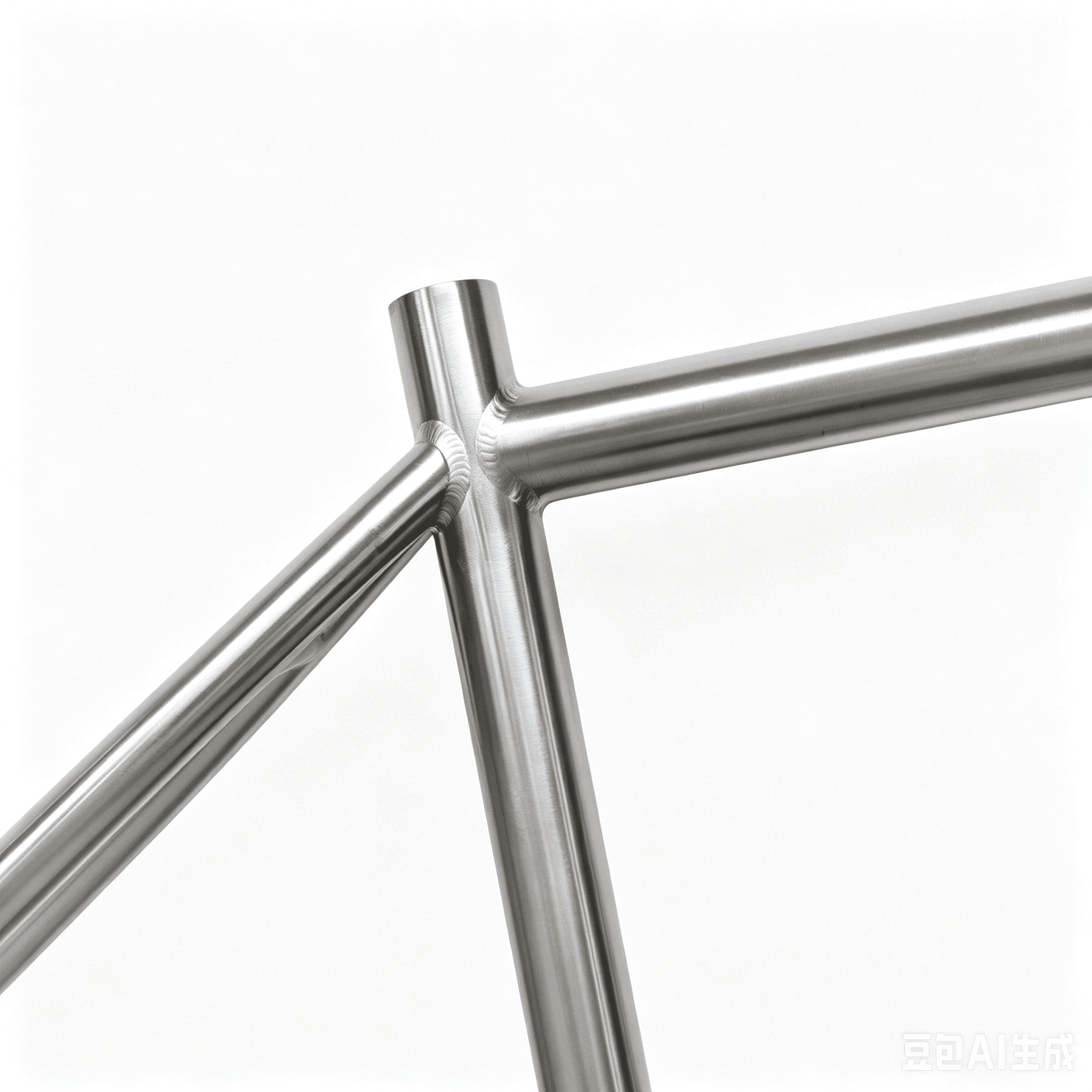

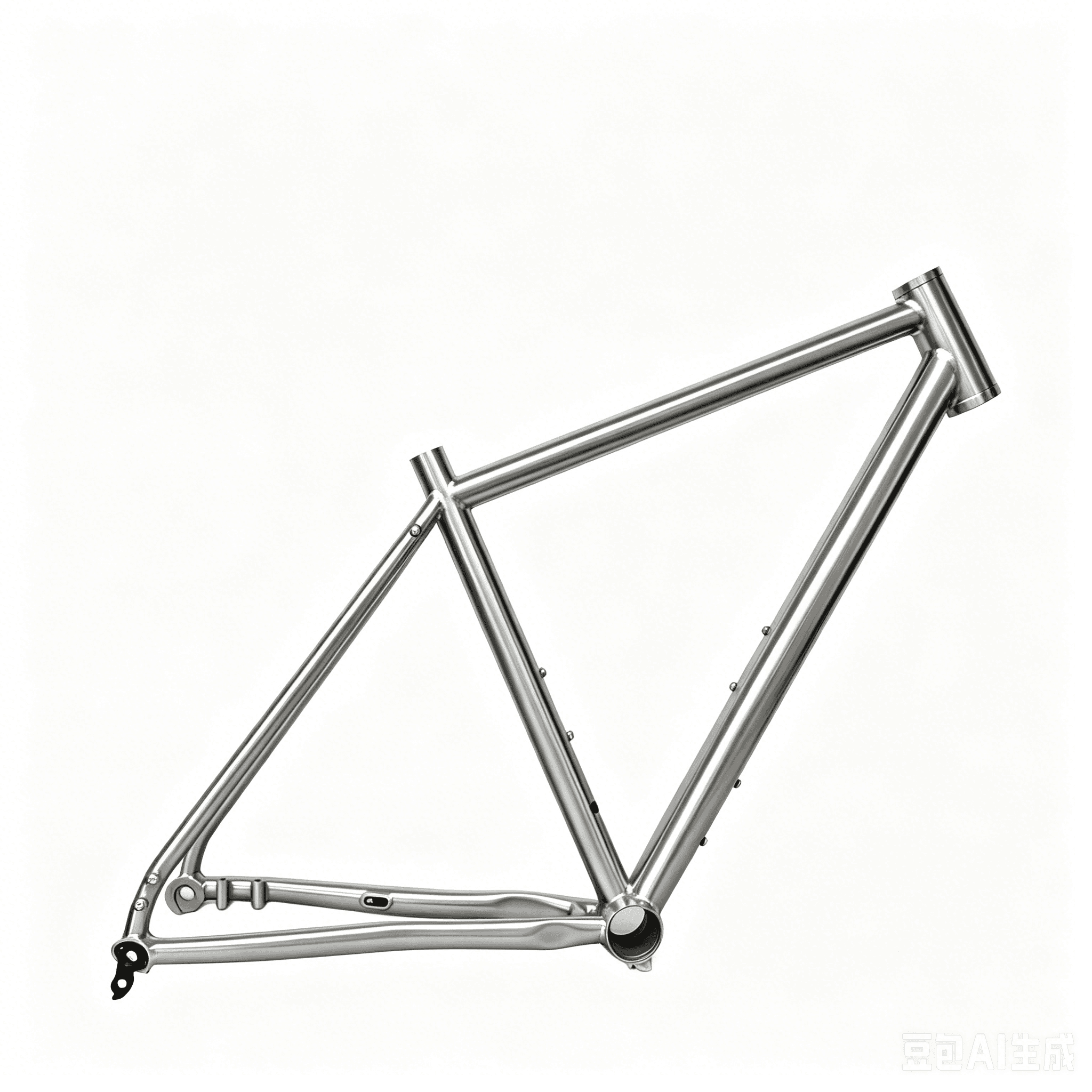

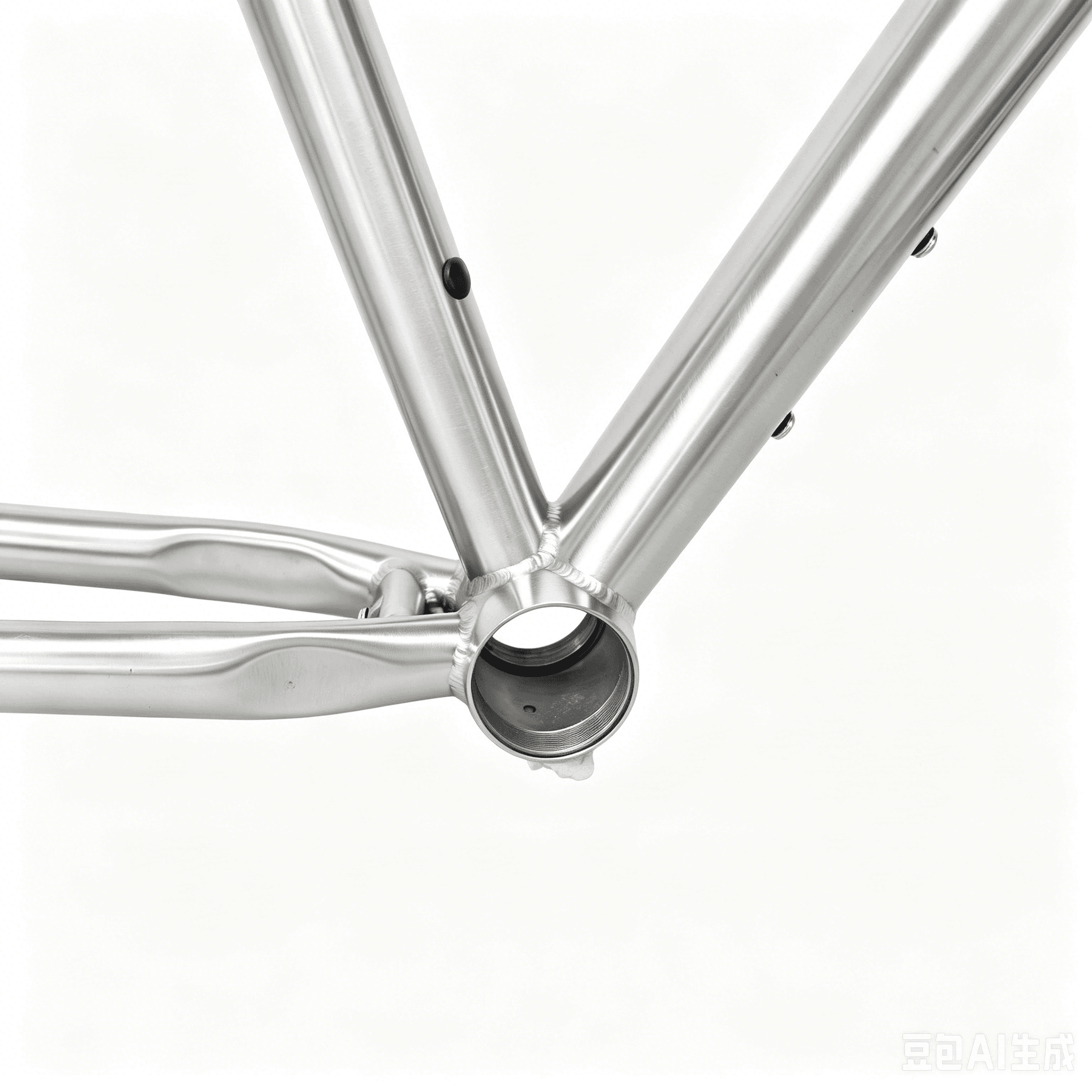

RoveTi 45 Titanium Frame
The RoveTi 45 titanium gravel frame balances all-day comfort with clearance for up to 45c tires. Review its geometry and build options for gravel routes and long-distance riding.
700C Frameset | 45C Tire Clearance
View Geometry chartAdd your configuration, then send a quote request from the cart.
Frame specs
- Modus 3Al-2.5V titanium frame
- Carbon fork
- Modus Carbon SL seatpost
- Modus Aluminum seatpost collar
- Aluminum thru axles
- X-12 Drop out
Technical
Frame
Modus 3Al-2.5V titanium frame
1-1/8" to 11/2"; 44/44
T47-68
Electronic and mechanical compatible
31.8mm front derailleur hanger size
Max chainring
- 50/34 Shimano
Max 700C tire = up to 45c
1650 grams (Size M)
Weight
Rider weight limit = 275 lb / 125 kg
Builds typically weigh 16 to 20 lbs depending on groupset, wheel, tire, and component choice.
Warranty
Our frames with 5 years warranty, fork and seat post with 2 years warranty.
Design concept
- 01Titanium construction meets 45mm tire capability.
- 02Designed for rugged trails and long expeditions
- 03 it balances strength and comfort for every off-road journey
Geometry
| Size | 50 | 52 | 54 | 55 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|---|
| Body Height(cm) | 163-168cm | 170-175cm | 175-180cm | 178-183m | 185-187cm | 184-194cm | 195-200cm |
| TT Effective length(mm) | 52 | 53 | 54.5 | 55.5 | 56.5 | 59 | 60.5 |
| Seat tube Length(mm) | 46 | 48 | 51 | 52 | 53 | 55 | 57 |
| Seat tube angle(°) | 75 | 74.25 | 74 | 73.5 | 73.25 | 73 | 72.75 |
| Head Tube Length(mm) | 120 | 130 | 140 | 150 | 160 | 170 | 190 |
| Head Tube Angle(°) | 71 | 71 | 71.5 | 71.5 | 72 | 72 | 72.25 |
| BB drop(mm) | 71 | 71 | 69 | 69 | 69 | 69 | 68 |
| Chainstay Length(mm) | 430 | 430 | 430 | 430 | 430 | 430 | 430 |
| Fork Length(mm) | 395 | 395 | 395 | 395 | 395 | 395 | 395 |
| Fork offset(mm) | 47 | 47 | 47 | 47 | 47 | 47 | 47 |
| Reach(mm) | 366 | 371 | 376 | 379 | 383 | 402 | 409 |
| Stack(mm) | 563 | 572 | 581 | 591 | 602 | 612 | 631 |
Plan your frame
Compare this model with related frames, start a one-off custom build, or discuss an OEM or production program with Modus Titanium.
